The Fusion rear-wheel drive power chair delivers terrain-gripping torque and is available with a maximum speed of up to 4 mph (6.5 km/h). The innovative, compact design of the Fusion makes it highly manoeuvrable in tight spaces without
sacrificing traditional rear-wheel drive performance.
Available Model Options
These are the available options for this model. You will be able to include any of these items on your Pride product.

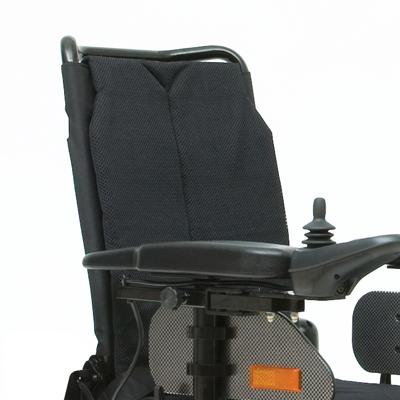

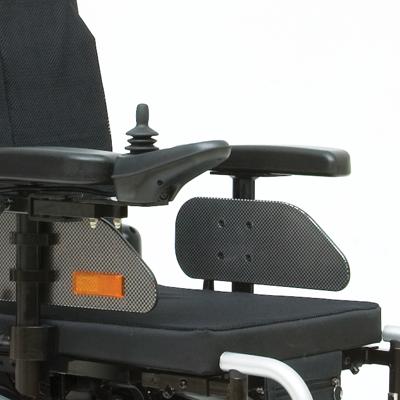

|Power Tilt and Manual Recline||Standard Swing-Away Leg Rests|
|Power Tilt and Power Recline||Manual Elevating Leg Rests|
|Height and Width Adjustable, Removable Arm Rests||Headrest|
|Residual Limb Support-Left/Right Leg||Kerb Climber|
Note: All specifications subject to change without notice.
|Weight Capacity: 21 Stone (136 kg)||Suspension: Rear|
|Maximum Speed: 4 mph (6 kph)||Drive Train: Two motor – rear wheel drive|
|Ground Clearance: 4.5” (11 cm)||Braking System: Intelligent braking, electronic, electro-mechanical|
|Turning Radius: 25.5” (65 cm)||Electronics: 70 amp PG VR2 controller|
|Overall Length: 31.8” (81 cm)6 / 43.3” (110 cm)5 5) With leg rests. 6) Without leg rests.||Standard Seating: Tension-adjustable, sling back plus solid seat pan|
|Overall Width: 25” (65 cm)||Standard Footrest: 70 degree swing-away|
|Width when folded: 12.5″ (32 cm)||Battery Charger: Off-board, 5 amp|
|Drive Wheels: 14” (35 cm)||Battery Requirements: Two x 12 volt – 55 amp|
|Castor Wheels: 9” (23 cm) solid (front)||Battery Pack Weight: 37lb (17 Kg) each|
|Anti Tips: 3” (7.6 cm) solid (rear)||Base Weight: 168 lbs. (76.2 kg)|
