Pride Jazzy Air

Product Description

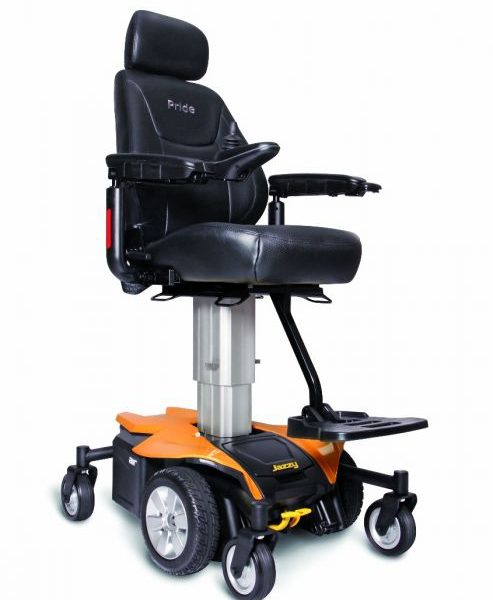

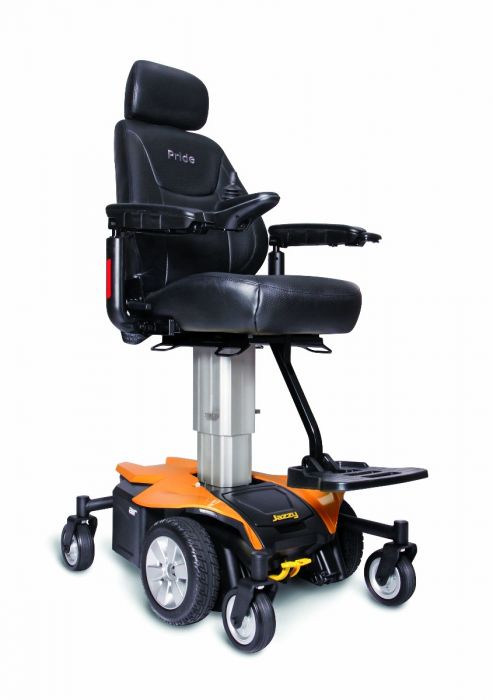

Introducing the new Jazzy Air® a new era in power mobility. The advanced stability and performance of the chassis allows the Jazzy Air to be safely elevated to 10”, whilst driving at 3.5 mph.

The Jazzy Air® features Active-Trac® suspension, which provides unique stability in both the raised and lowered position. With a tight turning radius of 48.26 cm (19”), unique Mid-Wheel 6® Drive Design and the addition of bright LED markers combines to make the Jazzy Air a smoother more enjoyable ride.

Colours: Red, Pink, Orange, Yellow, White, Black, Grey, Green

Specification

Battery Weight (each)	11.1 kg
Weight Capacity	21 Stone 6lbs (137 kg)
Maximum Speed	4 mph (6 km/h)
Ground Clearance	2.54 cm (1″) at motor bracket
Overall Length	107.2 cm (42.2″)
Overall Width	64.77 cm (25.5″)
Turning Radius	57.15 cm (22.5″)
Standard Controls	70A PG / VR2 Control
Heaviest Piece (when disassembled)
Total Weight (without batteries)	56.1 kg (123.6 lbs)
Suspension	Front and Rear
Battery Requirements	2 x 12 Volt, Deep Cycle (standard)
Seating	Comfort High Back Seat: 16″ W adjustable depth from 16″ – 16″ 18″ W adjustable depth from 18″ – 18″ 20″ W adjustable depth from 20″ – 20″
Tyres	Castors: 15.25 cm (6″) Solid rear and front Drive Wheels: 25.04 cm (10″)
Note	1. Due to manufacturing tolerances and continual product improvement, this specification can be subject to a variance of + or – 3 %. 2. Specification varies with user weight, terrain, battery type, battery condition and tire pressure. 3. Battery weight may vary based on manufacturer. Tested in accordance with ANSI/RESNA, WC Vol. 2, Section 4 and ISO 7176-4 standards. Results derived from theoretical calculations based on battery specifications and drive system performance. Testing conducted at maximum weight capacities. This specification can be subject to a variance of +10%, -5%. The information contained herein is correct at the time of publication; we reserve the right to alter specifications without prior notice.
